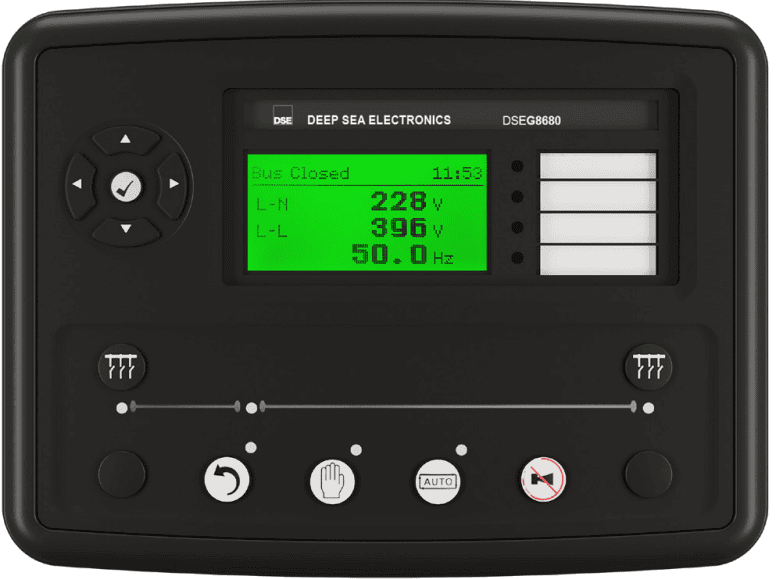

DSEG8680

DSEG8680

Bus-Tie Controller

The G8680 controls a generator bus-tie breaker. It automatically manages the synchronising of the 2 buses using the AMSC (advanced multi-set communications) link and has a built-in check sync function. The controller has been designed to work with the DSEG8600 when configured as a single-set / multi-set or mains (utility) controller and with the dedicated G8660 mains (utility) controller.

Overall (W x H x D)
248 mm x 182.6 mm x 45.2 mm / 9.77” x 7.19” x 1.78”

Panel Cut-Out (W x H)
220 mm x 160 mm / 8.66” x 6.3”

Maximum Panel Thickness
8 mm / 0.31”
